Heavy Duty Attachments
Premium
Premium
Rock
Breakers
Engineered for maximum impact and structural durability. Our premium series delivers high production with significantly lower maintenance costs.
Silence Design
Advanced noise reduction technology for urban project compatibility.
Longevity
Unique front head design ensures extended life for chisel locks.
High Production
Optimized power-to-weight ratio for maximum breaking efficiency.
Our Product Range
F-06P
Weight
350 KG
Chisel
75 MM
Press
170 BAR
Flow
40-90 LPM
Blow
450-800 BPM
Gas
NA
SUITABLE: 4.5 - 7.0 TON
F-15P
Weight
950 KG
Chisel
105 MM
Press
210 BAR
Flow
70-125 LPM
Blow
350-600 BPM
Gas
55-60 BAR
SUITABLE: 10 - 15 TON
F-23P
Weight
1600 KG
Chisel
135 MM
Press
220 BAR
Flow
125-150 LPM
Blow
450-600 BPM
Gas
55-60 BAR
SUITABLE: 18 - 26 TON
F-25P
Weight
1780 KG
Chisel
140 MM
Press
230 BAR
Flow
125-150 LPM
Blow
350-450 BPM
Gas
NA
SUITABLE: 22 - 28 TON
F-40P
Weight
2650 KG
Chisel
155 MM
Press
240 BAR
Flow
190-250 LPM
Blow
300-400 BPM
Gas
55-60 BAR
SUITABLE: 32 - 30 TON

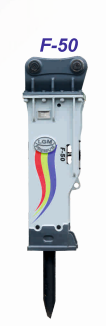

F-50P
Weight
3400 KG
Chisel
165 MM
Press
260 BAR
Flow
160-180 LPM
Blow
250-400 BPM
Gas
60 BAR
SUITABLE: 30 - 40 TON
F-60P
Weight
3991 KG
Chisel
175 MM
Press
290 BAR
Flow
160-180 LPM
Blow
200-350 BPM
Gas
60 BAR
SUITABLE: 40 - 55 TON

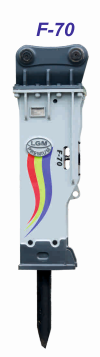

F-70P
Weight
5500 KG
Chisel
200 MM
Press
290 BAR
Flow
160-180 LPM
Blow
200-330 BPM
Gas
60 BAR
SUITABLE: 60 - 70 TON

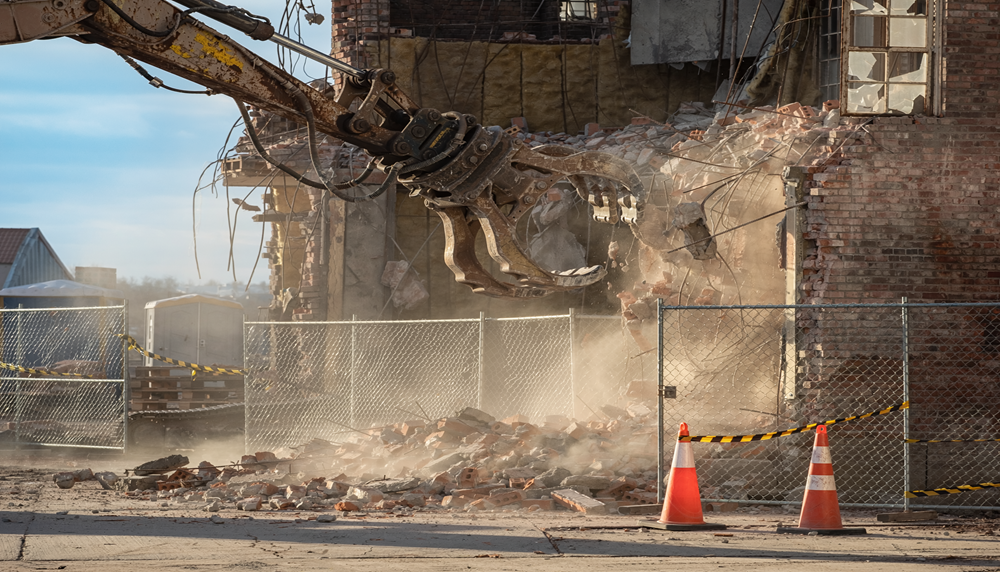

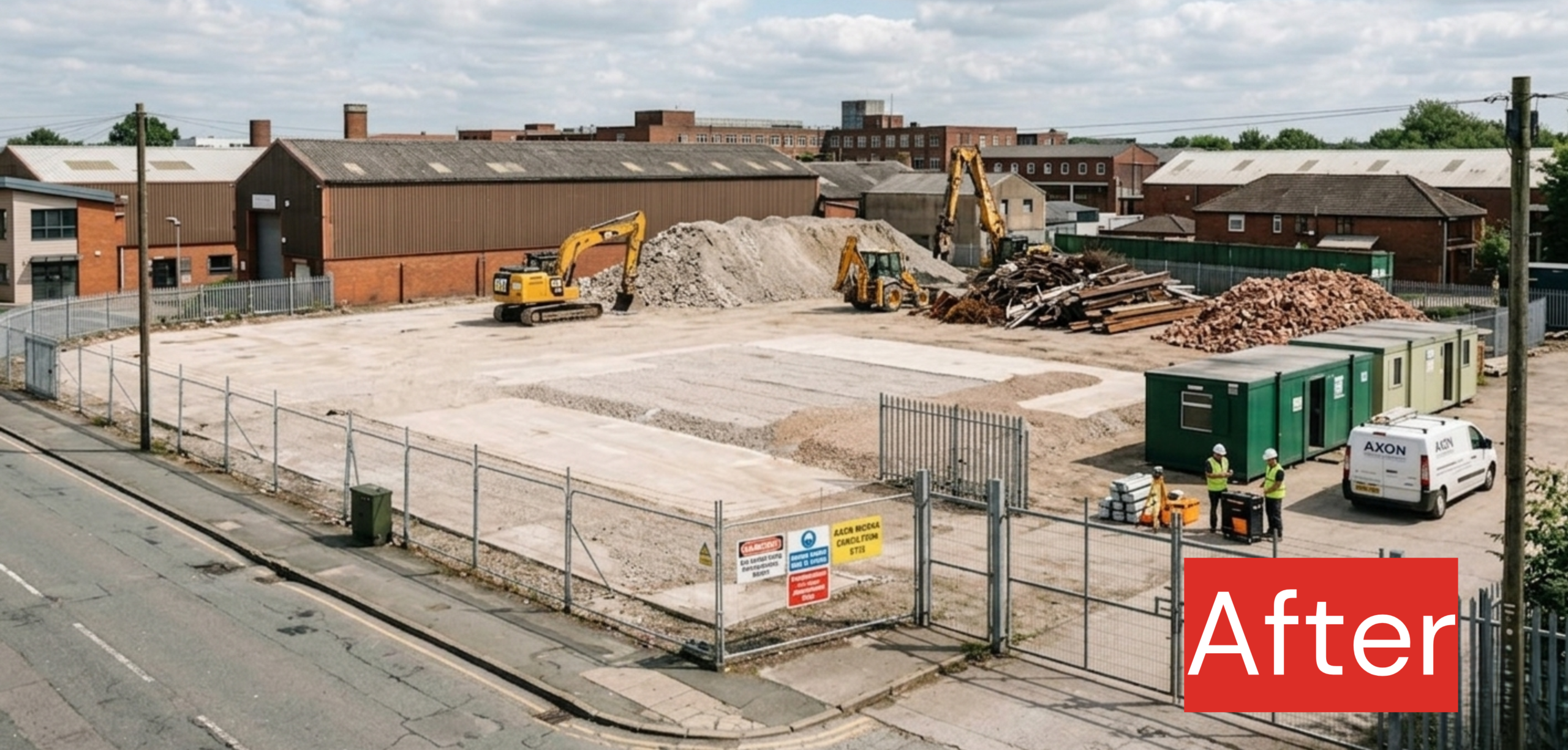

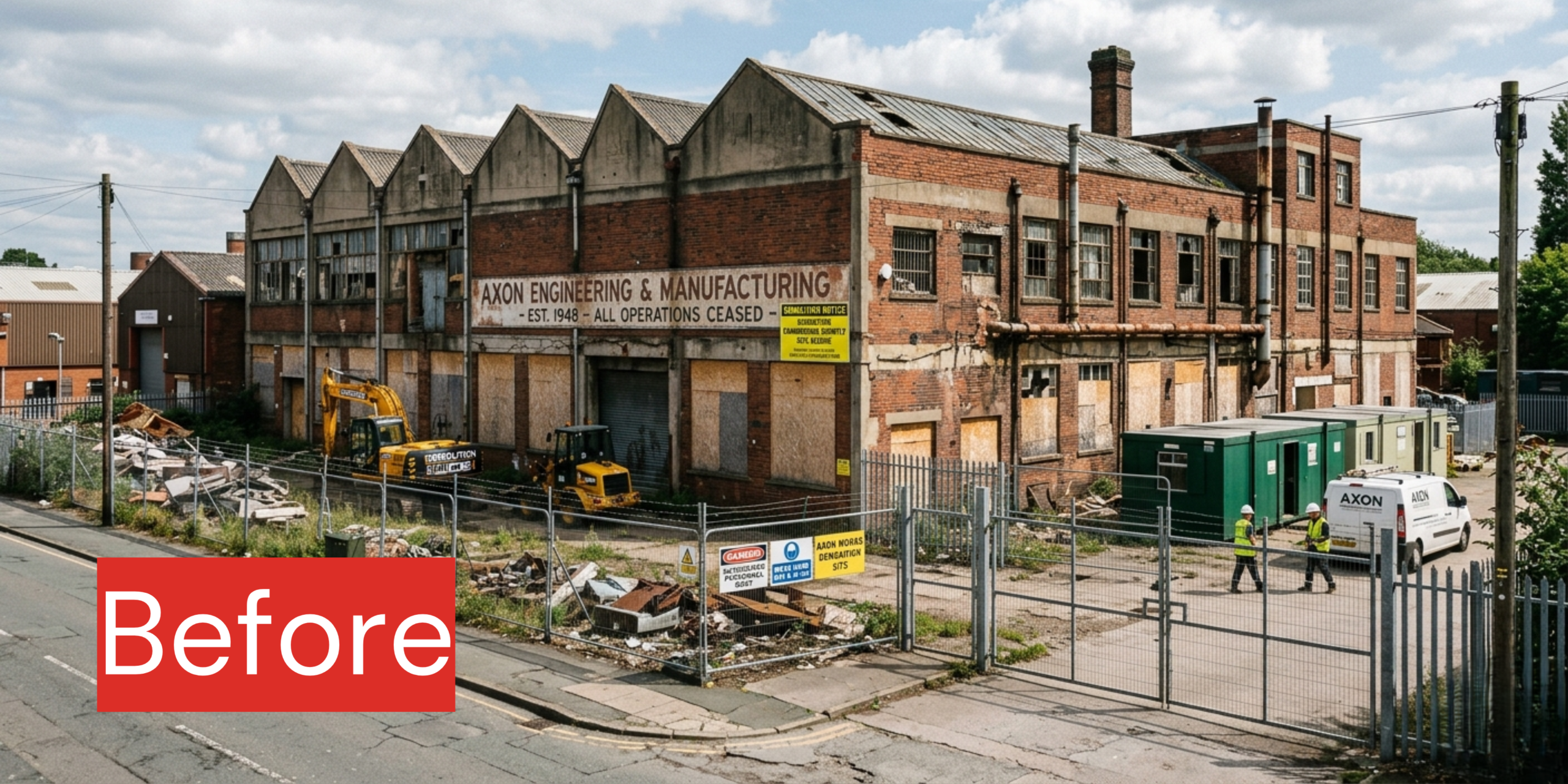

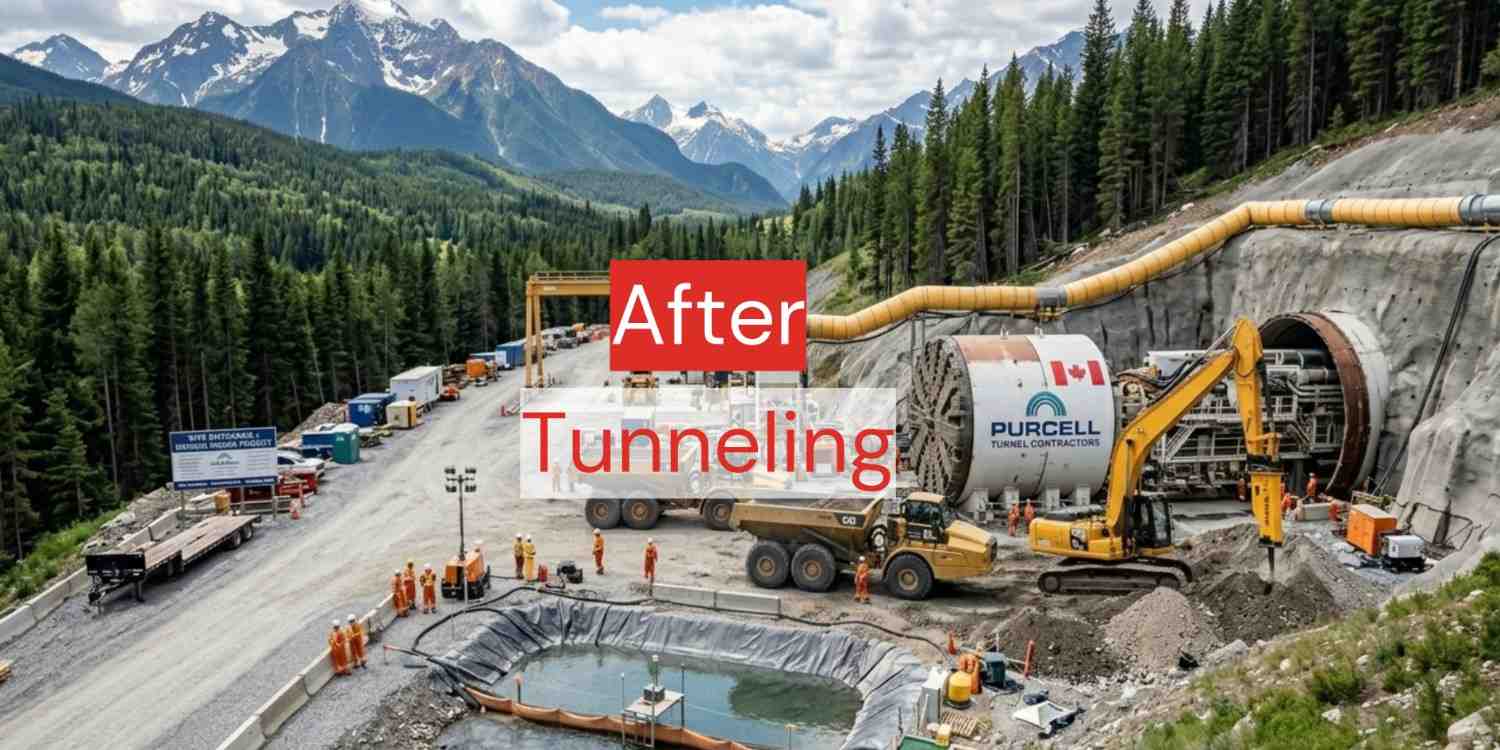

Our Applications
Our Applications
Technical Matrix
| SPECIFICATION | UNIT | F-06P | F-15P | F-23P | F-25P | F-40P | F-50P | F-60P | F-70P |
|---|---|---|---|---|---|---|---|---|---|
| Operating Weight | KG | 350 | 950 | 1600 | 1780 | 2650 | 3400 | 3991 | 5500 |
| Chisel Diameter | MM | 75 | 105 | 135 | 140 | 155 | 165 | 175 | 200 |
| Relief Setting Pressure | BAR | 170 | 210 | 220 | 230 | 240 | 260 | 290 | 290 |
| Oil Flow | LPM | 40-90 | 70-125 | 125-150 | 125-150 | 190-250 | 160-180 | 160-180 | 160-180 |
| Blow Rate | BPM | 450-800 | 350-600 | 450-600 | 350-450 | 300-400 | 250-400 | 200-350 | 200-330 |
| Accumulator Gas Pressure | BAR | NA | 55-60 | 55-60 | NA | 55-60 | 60 | 60 | 60 |
| Suitable Carrier | TON | 4.5-7.0 | 10-15 | 18-26 | 22-28 | 32-30 | 30-40 | 40-55 | 60-70 |
TEKNIK ROCKBREAKERS
Unmatched durability for the world's toughest terrains. High-impact performance starts here.
